deskmountpro Tilting TV Wall Mount Bracket for 23-42 inch Flat and Curved Screens, Steel, VESA 200×200
$8.00

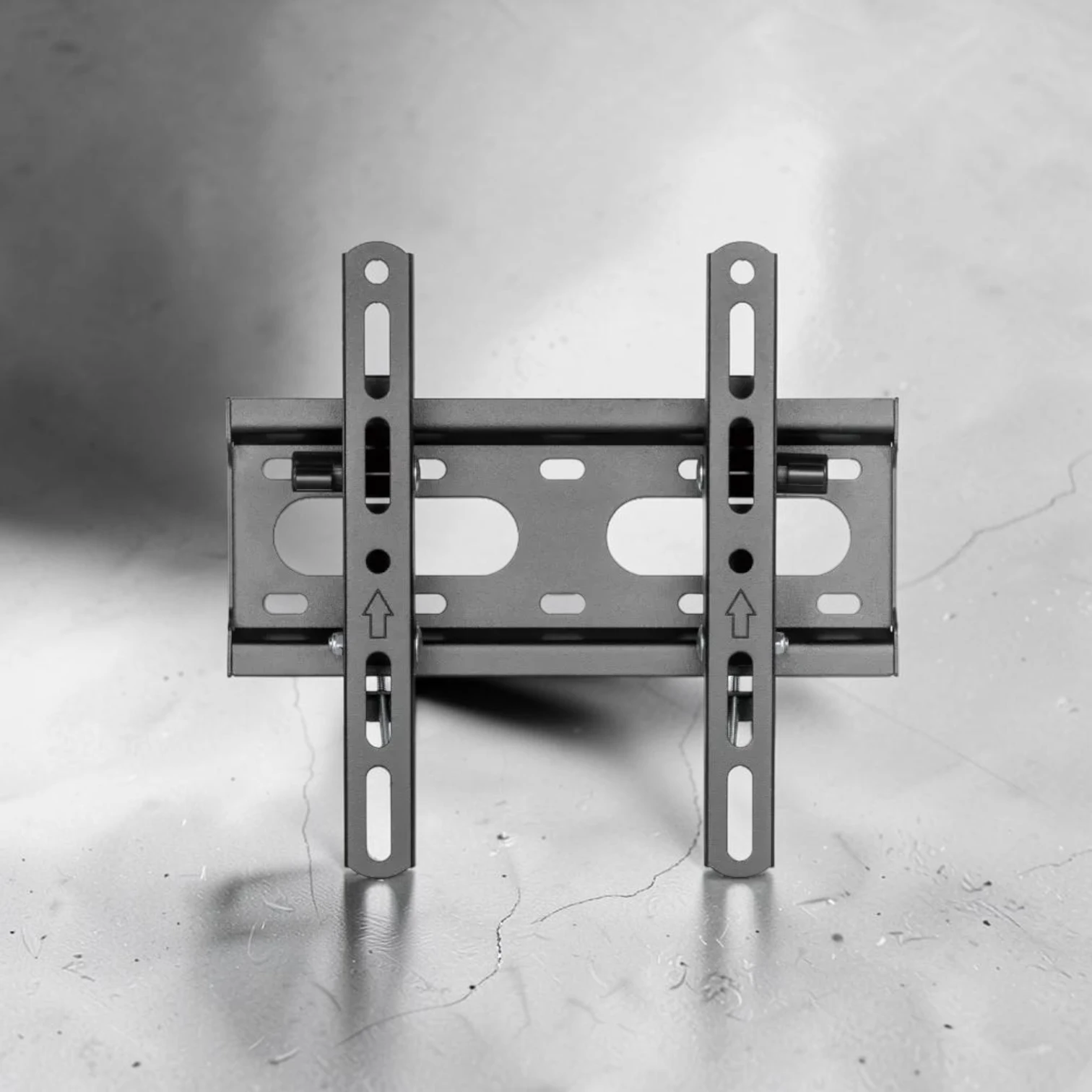

This tilting wall mount bracket is engineered to support LCD and LED displays ranging from 23 to 42 inches. Constructed from cold-rolled steel with a powder-coated finish, the unit provides a sturdy mounting solution for residential or commercial use. The bracket is compatible with VESA mounting patterns including 75×75, 100×100,…
This tilting wall mount bracket is engineered to support LCD and LED displays ranging from 23 to 42 inches. Constructed from cold-rolled steel with a powder-coated finish, the unit provides a sturdy mounting solution for residential or commercial use. The bracket is compatible with VESA mounting patterns including 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, and 200×200.

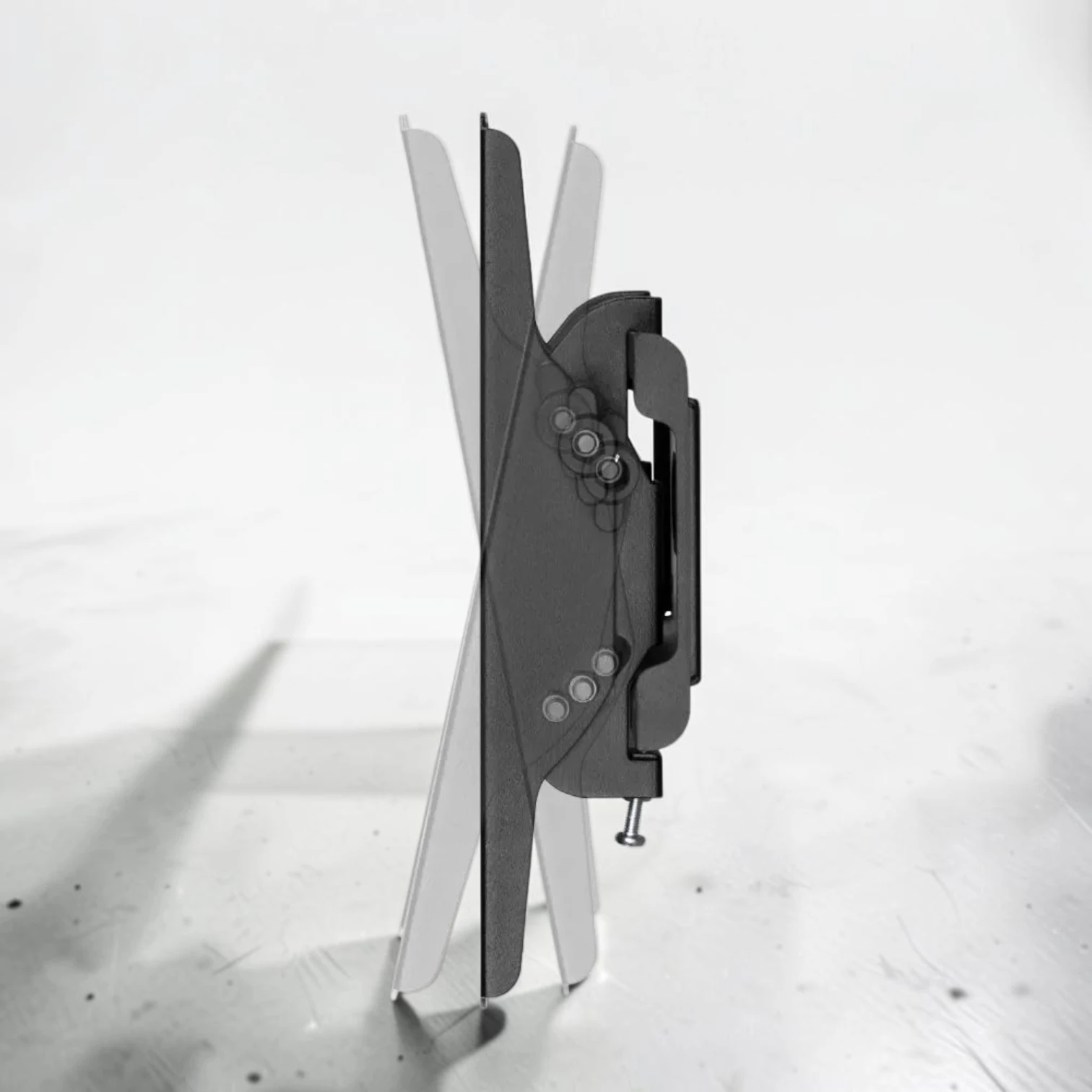

The design features a low-profile depth of 53 mm (2.1 inches) from the wall. The tilt mechanism is operated via easy-grip knobs, allowing for adjustments between +12° and -12°. For security, the unit includes rail screws to attach the display to the wall plate. A hook-on bubble level is provided in the package to assist with alignment during the installation process.
Technical Specifications:
- Screen Size Compatibility: 23 – 42 inches (58 – 106 cm)
- Weight Capacity: 99 lbs (45kg)
- Tilt Range: +12° to -12°
- Profile: 53 mm (2.1 inches)
- Material: Steel and plastic components
- Bracket/Wall Plate Thickness: 1.4 mm (0.055 inch) cold-rolled sheet
- Dimensions: 263 x 223 x 53 mm (10.4 x 8.8 x 2.1 inches)
- Mounting Style: Fixed and tilting wall mount for solid walls
- Compliance: RoHS and REACH compliant
- Product Weight: 3 lbs (1.36 kg)
Please note that this mount is designed for solid wall installations. Due to the low-profile design, it is recommended to manage cable connections prior to final mounting of the display. Ensure the VESA pattern of your device matches the supported dimensions before installation.
