deskmountpro Full Motion TV Wall Mount Bracket for 37 to 90 inch Screens, Steel, VESA 600×400
Original price was: $82.00.$74.00Current price is: $74.00.

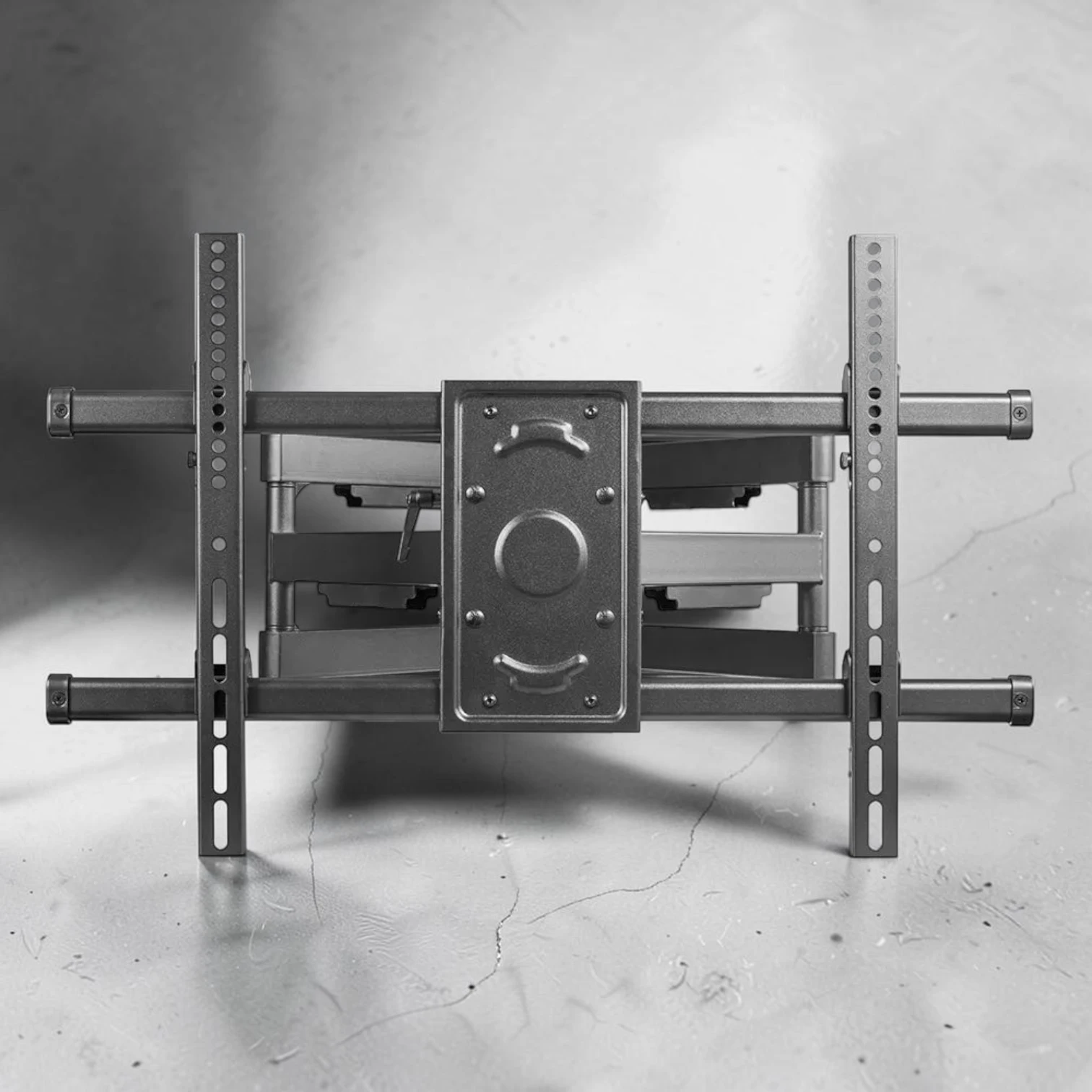

This full-motion wall mount provides adjustable positioning for 37 to 90-inch LCD and LED displays. Engineered from steel and plastic components, the bracket supports a maximum VESA pattern of 600×400. The structure facilitates a tilt range of +5° to -15°, a swivel range of +60° to -60°, and a screen…
This full-motion wall mount provides adjustable positioning for 37 to 90-inch LCD and LED displays. Engineered from steel and plastic components, the bracket supports a maximum VESA pattern of 600×400. The structure facilitates a tilt range of +5° to -15°, a swivel range of +60° to -60°, and a screen leveling adjustment of ±3° to assist in achieving a desired viewing angle. The unit extends from a profile of 69mm to 635mm, offering flexible reach for various room configurations.
Technical Specifications:
- Mounting Style: Tilting & Swivel Wall Mount
- Material: Steel, Plastic
- Screen Size Compatibility: 37 – 90 inches (93.9 – 228.6cm)
- Weight Capacity: 143 lbs (65kg)
- VESA Patterns: 200×200, 300×300, 400×200, 400×400, 600×400
- Adjustments: Tilt +5° to -15°, Swivel +60° to -60°, Leveling ±3°
- Profile Depth: 69mm to 635mm (2.7 – 25 inches)

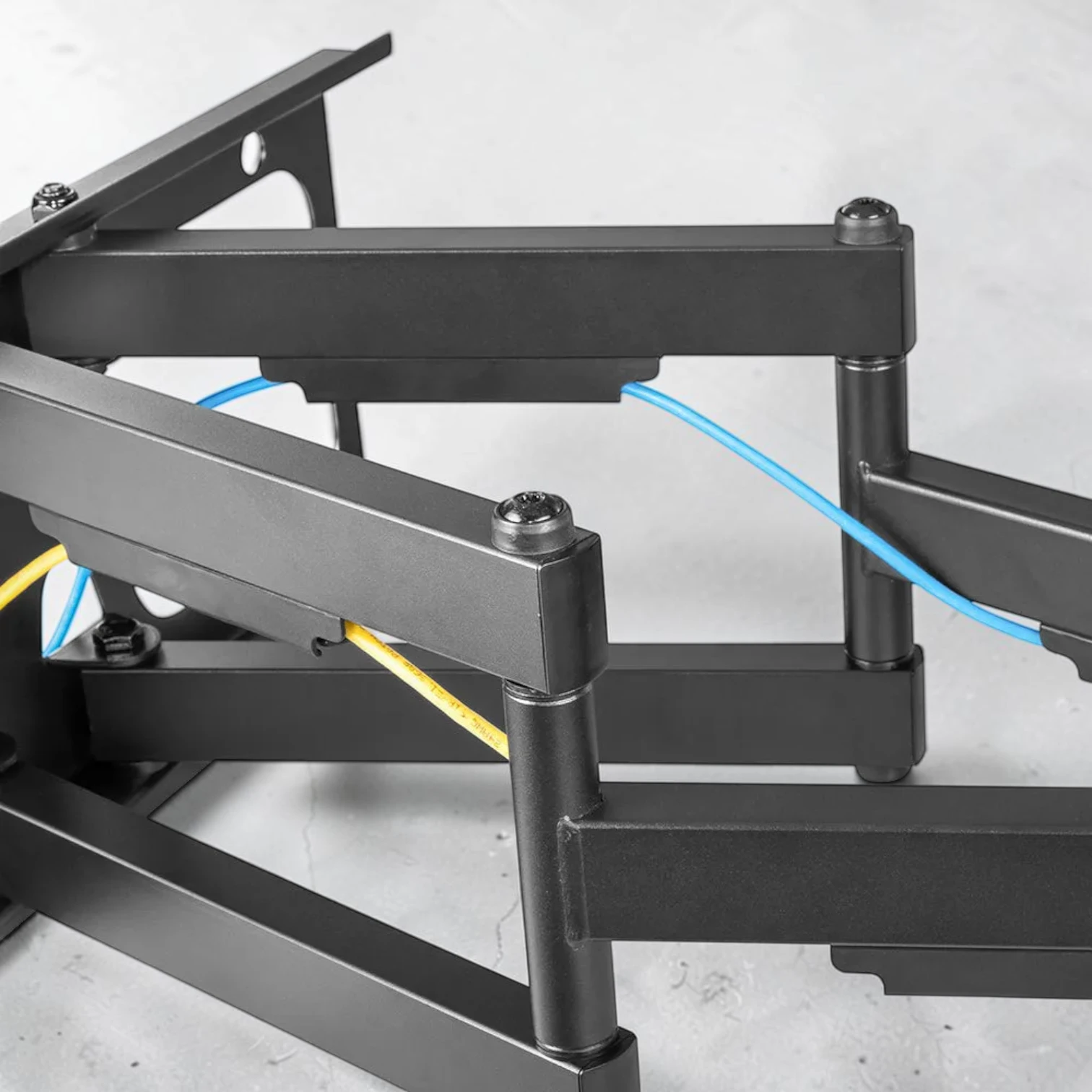

- Installation Requirements: Designed for solid wall or double stud mounting; includes integrated bubble level and cable management system.
- Included Hardware: M5x14 (4), M6x14 (4), M6x30 (4), M8x30 (4), M8x50 (4), Rectangular Washers (4), Small Spacers (8), Big Spacers (8), ST6.3×55 Screws (6), Concrete Anchors (6), D6 Washers (4).
- Compliance: c(UL), RoHS, REACH.
- Package Weight: 23.3 lbs (10.6kg).
The design is compatible with both flat and curved televisions. Installation instructions and necessary mounting hardware are provided to assist with the assembly process on compatible wall surfaces.
