deskmountpro Telescopic Swivel & Tilt Ceiling Mount Bracket for 23-42 inch Flat Screens, Steel, VESA 200×200
$48.00

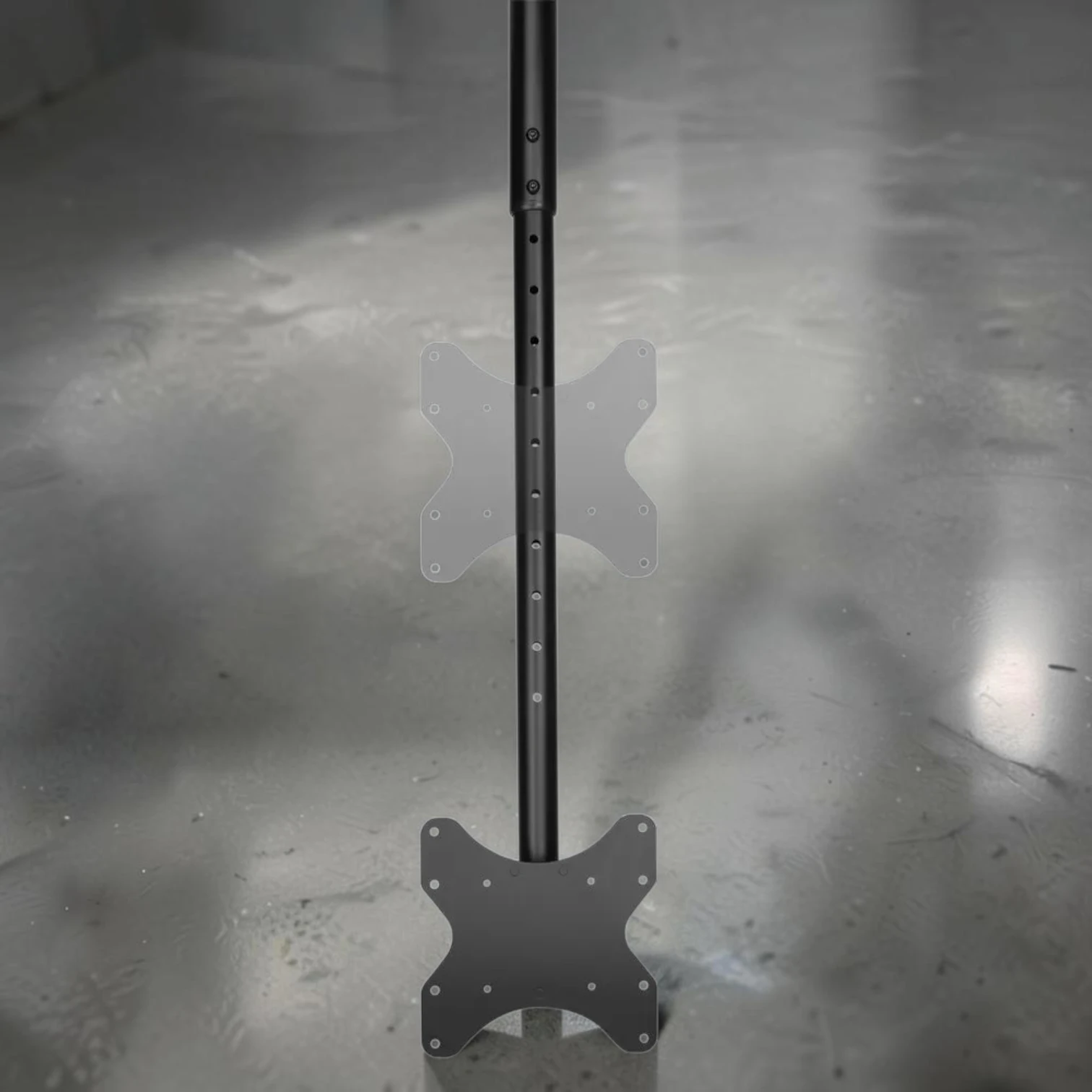

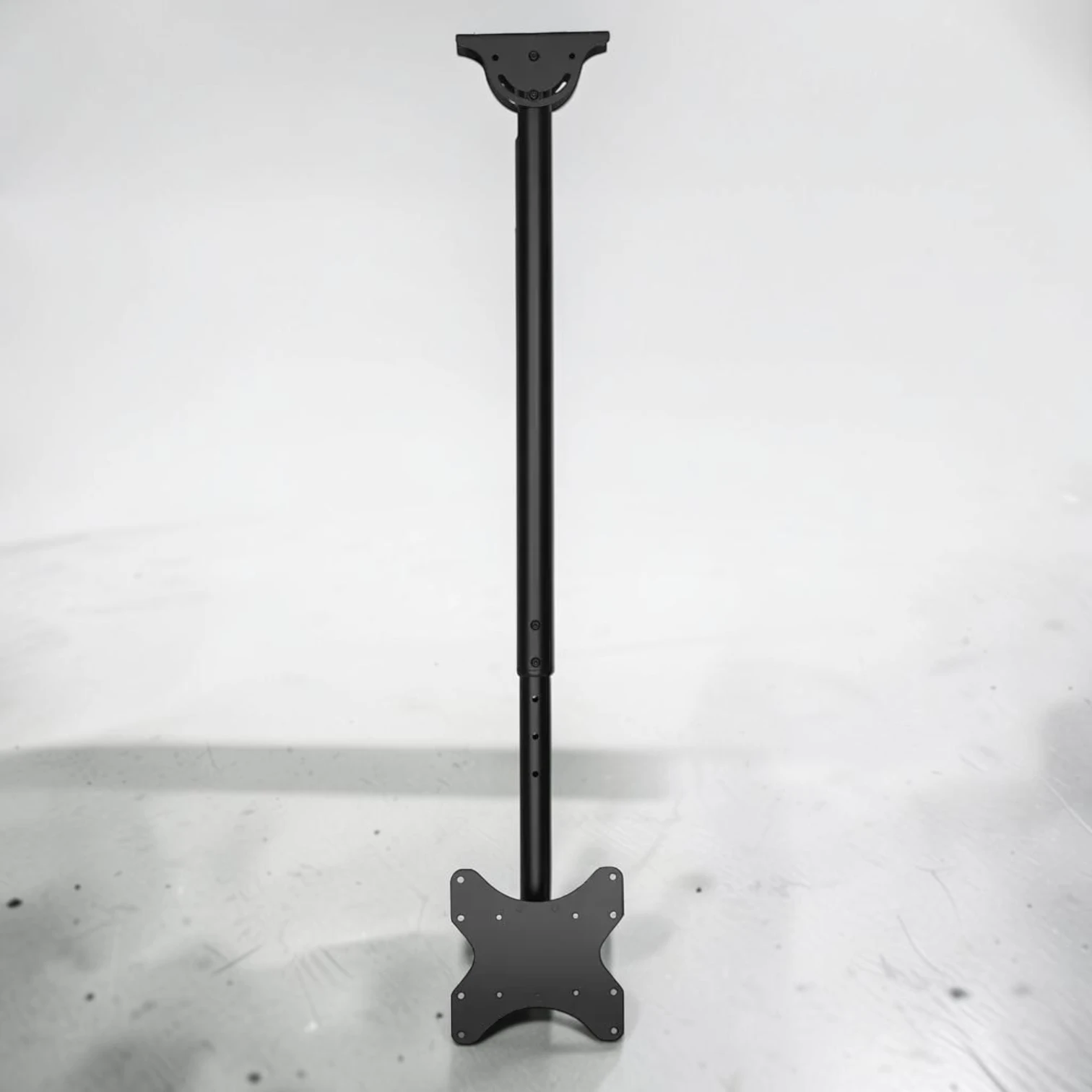

This telescopic ceiling mount is engineered for 23 to 42-inch flat LCD and LED displays. Constructed from steel, it supports a maximum weight capacity of 110 lbs (50kg). The mount is compatible with VESA mounting patterns of 100x100mm and 200x200mm, and is suitable for installation on both flat and beveled…
This telescopic ceiling mount is engineered for 23 to 42-inch flat LCD and LED displays. Constructed from steel, it supports a maximum weight capacity of 110 lbs (50kg). The mount is compatible with VESA mounting patterns of 100x100mm and 200x200mm, and is suitable for installation on both flat and beveled ceilings.

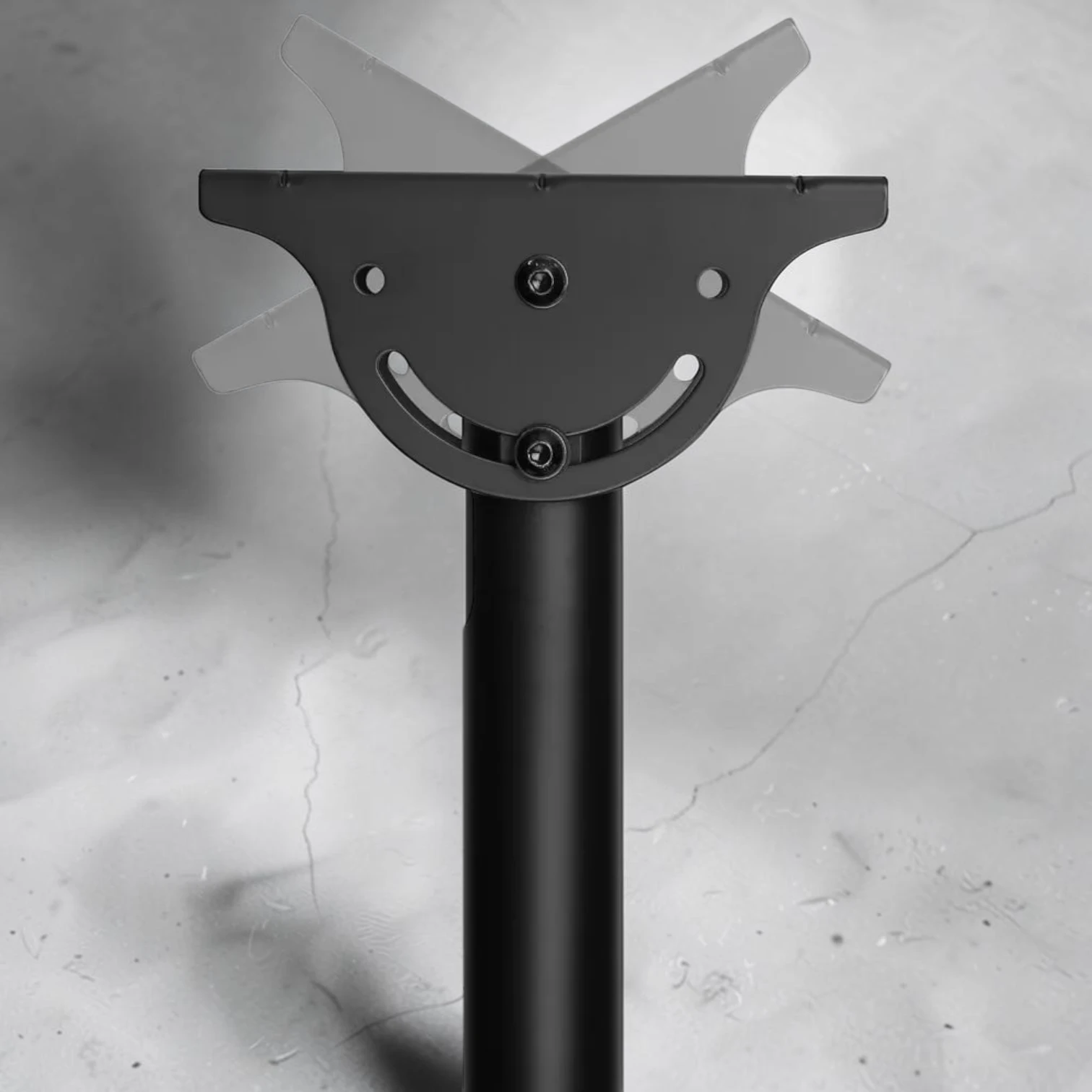

The unit offers a 180° swivel range in either direction and a 25° downward tilt to assist in positioning the screen. It also includes a level adjustment feature allowing for 3° of clockwise or counter-clockwise rotation to ensure horizontal alignment. An integrated cable management system is built into the bracket to facilitate the routing of power and signal cables.
Technical Specifications:
Mounting Style: Ceiling Mount
Color: Black
Material: Steel
Mounting Pattern: VESA 100×100, 200×200
Screen Size Compatibility: 23 – 42 inches (58.4cm – 106.7cm)
Weight Capacity: 110 lbs (50kg)
Tilt Range: -25° to +0°
Swivel Range: -180° to +180°
Level Adjustment: -3° to +3°
Profile Height: 1060 – 1560mm
Cable Management: Integrated
RoHS/REACH: Compliant
Package Contents:
The package includes mounting hardware consisting of: 4 x M4x14 screws, 4 x M5x14 screws, 4 x M6x14 screws, 4 x M8x20 screws, 4 x D5 washers, 4 x D8 washers, 8 x small spacers, 4 x ST6.3×55 screws, 4 x concrete anchors, and 4 x D6 washers. Product weight is 10.2 lbs (4.6kg). A 5-year warranty is provided for this item.
