deskmountpro Swivel & Tilt Ceiling Mount Bracket for 23-43 inch Flat LCD/LED TVs, Steel, VESA 200×200
$40.00
This ceiling mount bracket provides a stable mounting solution for 23 to 43 inch flat screen displays in residential or commercial environments. Constructed from powder-coated steel, the mount supports a maximum weight of 110 lbs (50kg) and is compatible with VESA mounting patterns including 100×100, 200×100, and 200×200. The structure…
This ceiling mount bracket provides a stable mounting solution for 23 to 43 inch flat screen displays in residential or commercial environments. Constructed from powder-coated steel, the mount supports a maximum weight of 110 lbs (50kg) and is compatible with VESA mounting patterns including 100×100, 200×100, and 200×200. The structure is designed for installation on both flat and beveled ceilings.

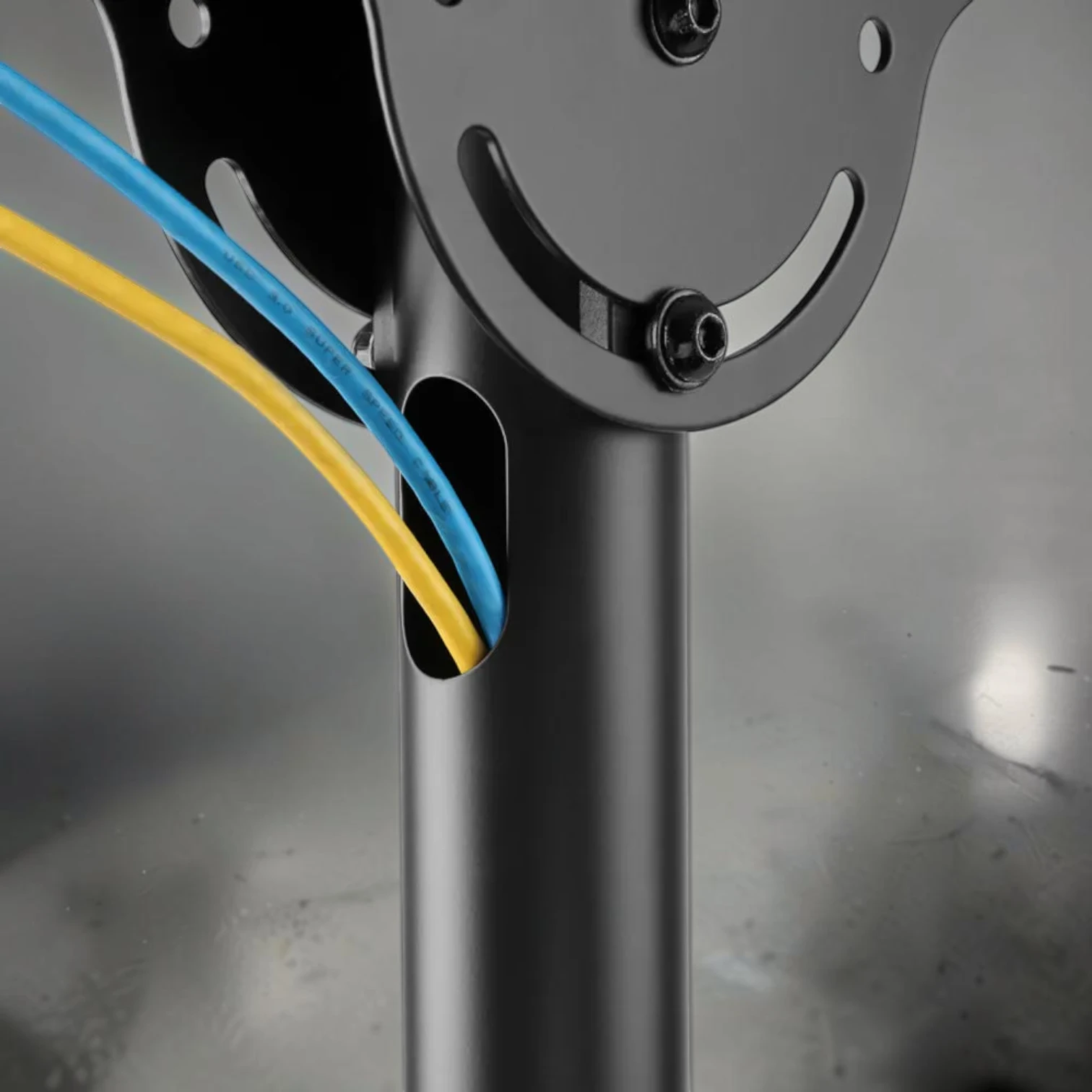

The bracket offers a range of motion, including a 180° swivel in either direction, a 25° downward tilt, and 3° of clockwise or counter-clockwise level adjustment to assist with screen alignment. The pole height is adjustable between 22 and 36 inches (55.8cm – 91.4cm), with a total profile range of 22 to 35.8 inches. An integrated cable management system is included to organize wiring along the mounting pole.
Physical Characteristics:
- Mounting Style: Ceiling Mount
- Material: Steel with Powder Coated Black finish
- Dimensions: 226 x 226 x 1023mm (8.9 x 8.9 x 40.3 inches)
- Screen Size Compatibility: 23 – 43 inches (58.4cm – 109.22cm)
- Weight Capacity: 110lbs (50kg)
- Tilt Range: -25° to 0°
- Swivel Range: -180° to 180°
- Level Adjustment: -3° to 3°
- Panel Type: Detachable Panel
Package Contents and Hardware:
Each unit includes: 4x M4x14 screws, 4x M5x14 screws, 4x M6x14 screws, 4x M8x20 screws, 4x D5 washers, 4x D8 washers, 8x small spacers, 4x ST6.3×55 screws, 4x concrete anchors, and 4x D6 washers. Product weight is 10.2 lbs (4.6kg).
Compliance and Warranty:
This product is RoHS and REACH compliant. It includes a 5-year warranty period.
