deskmountpro Fixed TV Wall Mount Bracket for 37-70 inch Flat and Curved LED/LCD Screens, VESA 600×400, Steel
$9.00

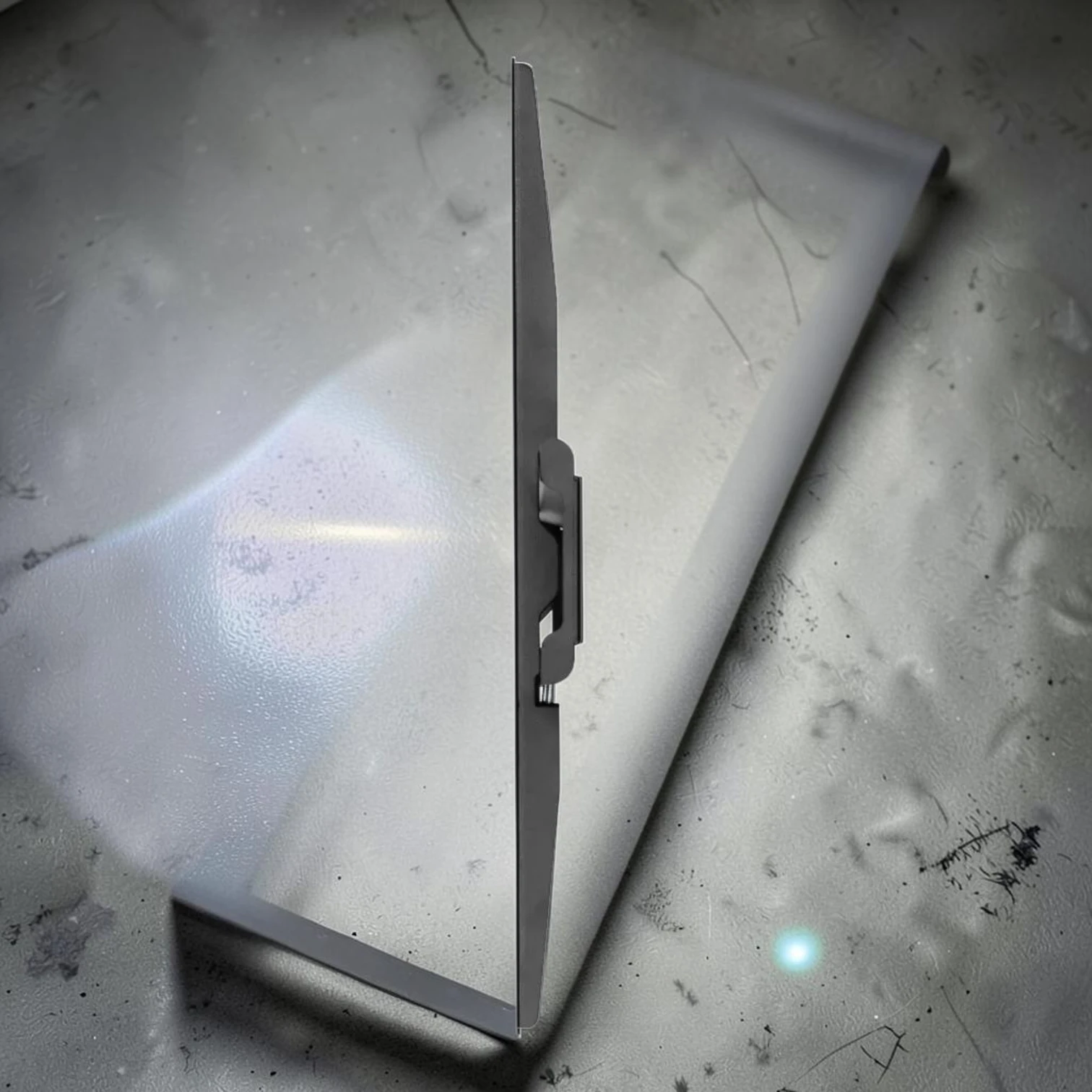

This fixed wall mount bracket is engineered to support LCD and LED displays ranging from 37 to 70 inches. Constructed from cold-rolled steel, the bracket provides a stable mounting solution for residential or commercial use. The design accommodates a maximum VESA hole pattern of 600×400.Technical Specifications:Mounting Style: Fixed Wall MountMaterial:…
This fixed wall mount bracket is engineered to support LCD and LED displays ranging from 37 to 70 inches. Constructed from cold-rolled steel, the bracket provides a stable mounting solution for residential or commercial use. The design accommodates a maximum VESA hole pattern of 600×400.
Technical Specifications:
- Mounting Style: Fixed Wall Mount
- Material: Cold-rolled steel (1.4mm thickness for both arms and wall plate)
- Dimensions: 635 x 420 x 27mm (25 x 16.5 x 1.1 inches)
- Weight Capacity: 99 lbs (45kg)
- Wall Profile: 27mm (1.1 inch)
- Compatible VESA Patterns: 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400
- Installation Surface: Solid wall
Installation Considerations:
The mount features security screws to hold the display to the wall plate. Due to the low-profile design, it is recommended to connect all necessary cables to the display before final attachment to the wall plate, as the 27mm clearance may limit access to rear ports after installation. The package includes a hook-on bubble level to assist in achieving a level installation. Please ensure the mounting surface is compatible with the specified weight capacity and dimensions before proceeding with installation.
Compliance:
- RoHS compliant
- REACH compliant
