deskmountpro Triple Screen Desktop Display Mount – Full Motion Gas Spring Arm – Fits 17 to 27 inch Monitors

This triple monitor mount provides a stable platform for three screens, each measuring between 17 and 27 inches. The structure is built from a combination of aluminum, steel, and plastic, finished with a powder-coated surface. It features a gas spring system designed to assist with vertical height adjustments and counterbalance the weight of attached displays within the 2.2 to 13.2 lbs per arm range.

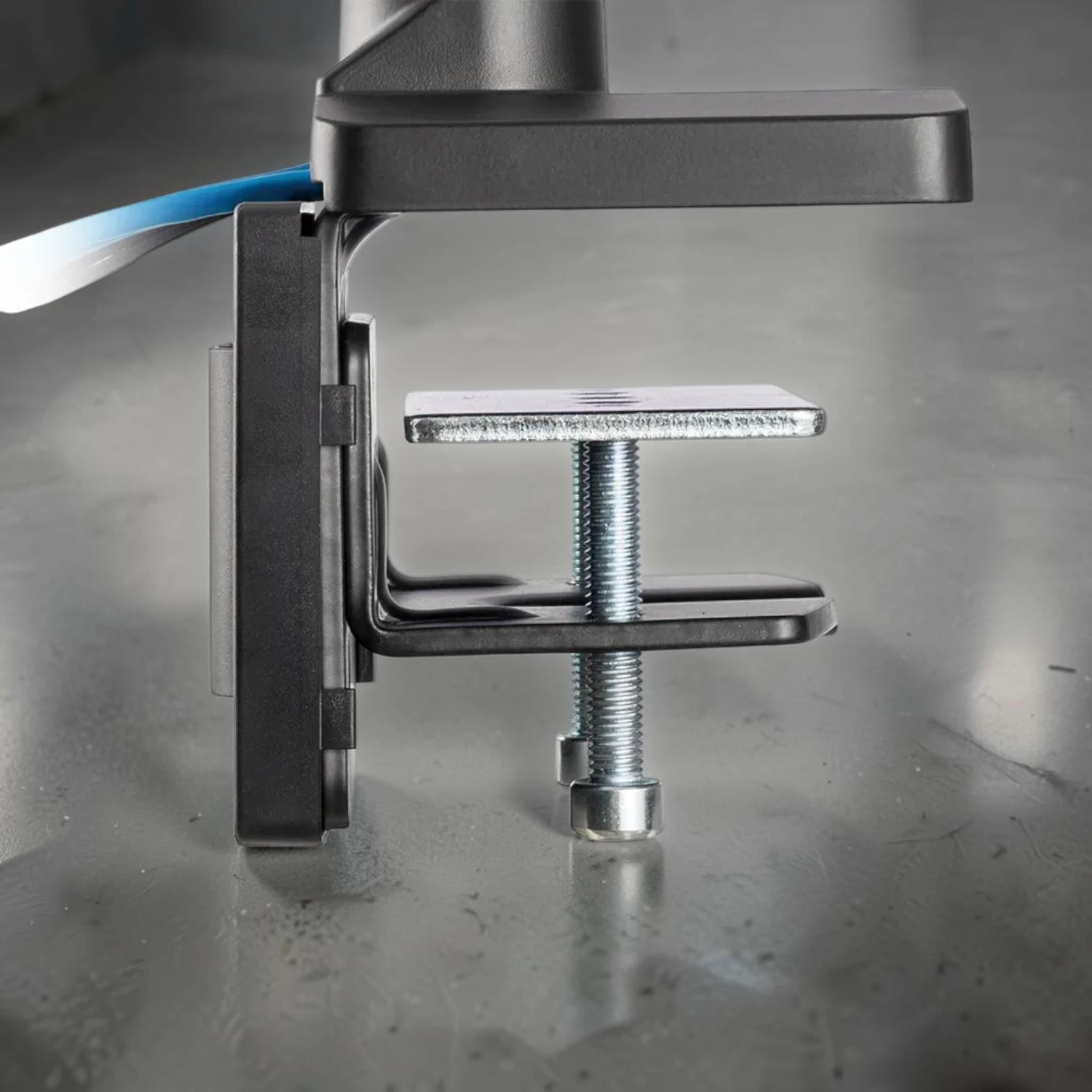

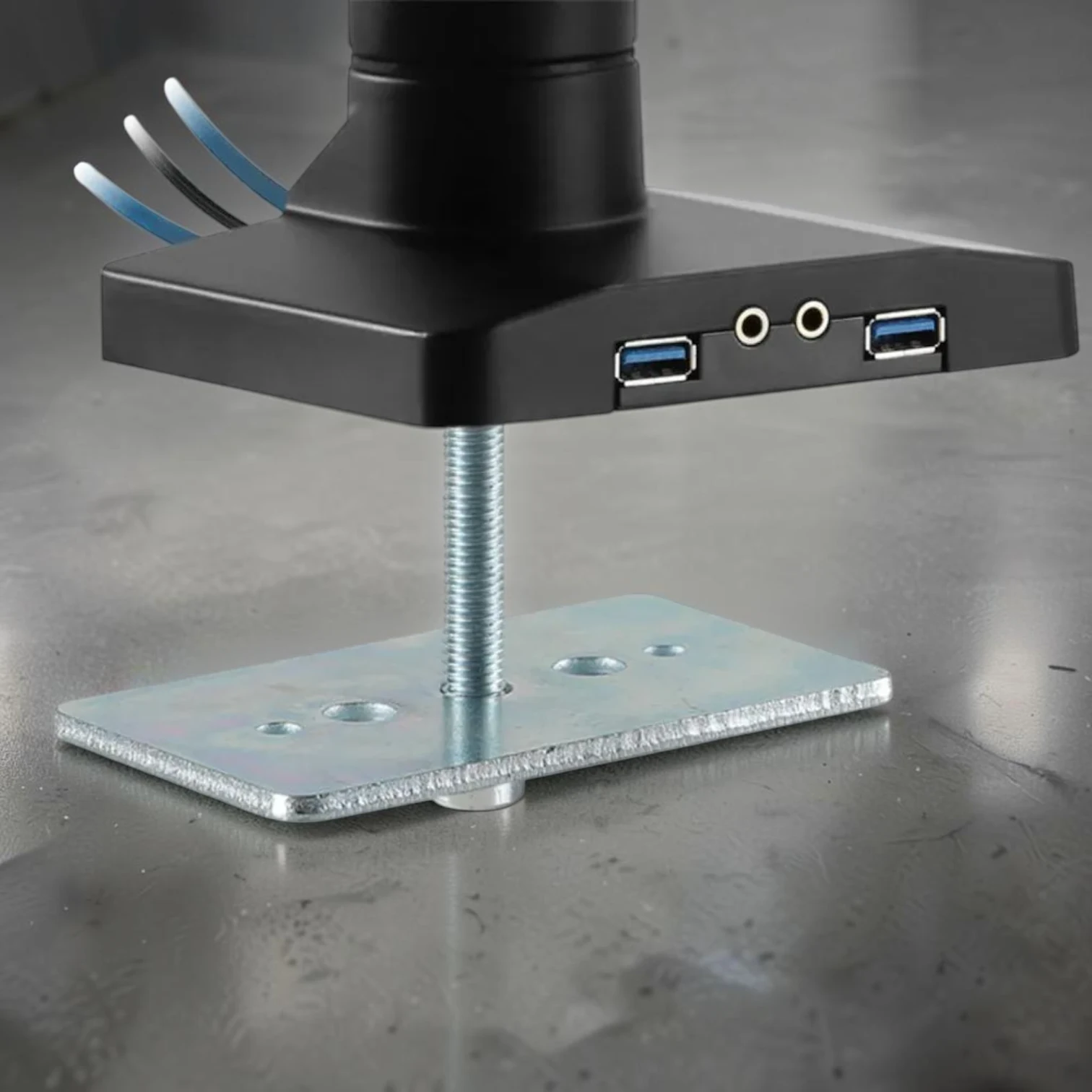

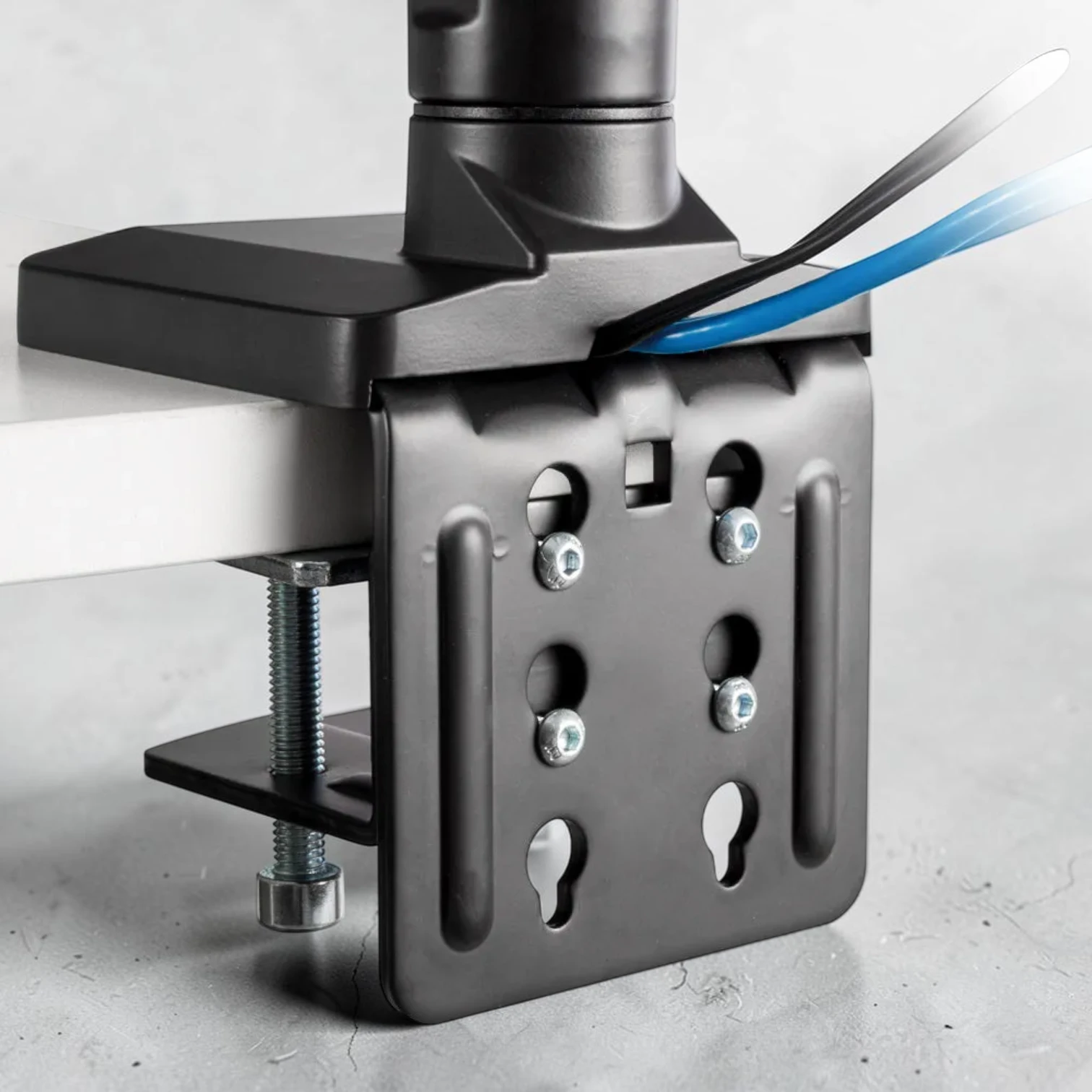

The unit offers a full range of motion, including a tilt range of +5° to -15°, a swivel range of +10° to -10°, and a full 360° screen rotation. The mounting system is compatible with VESA hole patterns of 75x75mm and 100x100mm. Users can choose between two installation methods: the clamp mount, which supports desk thicknesses of 10-85mm, or the grommet mount, which supports thicknesses of 10-48mm.

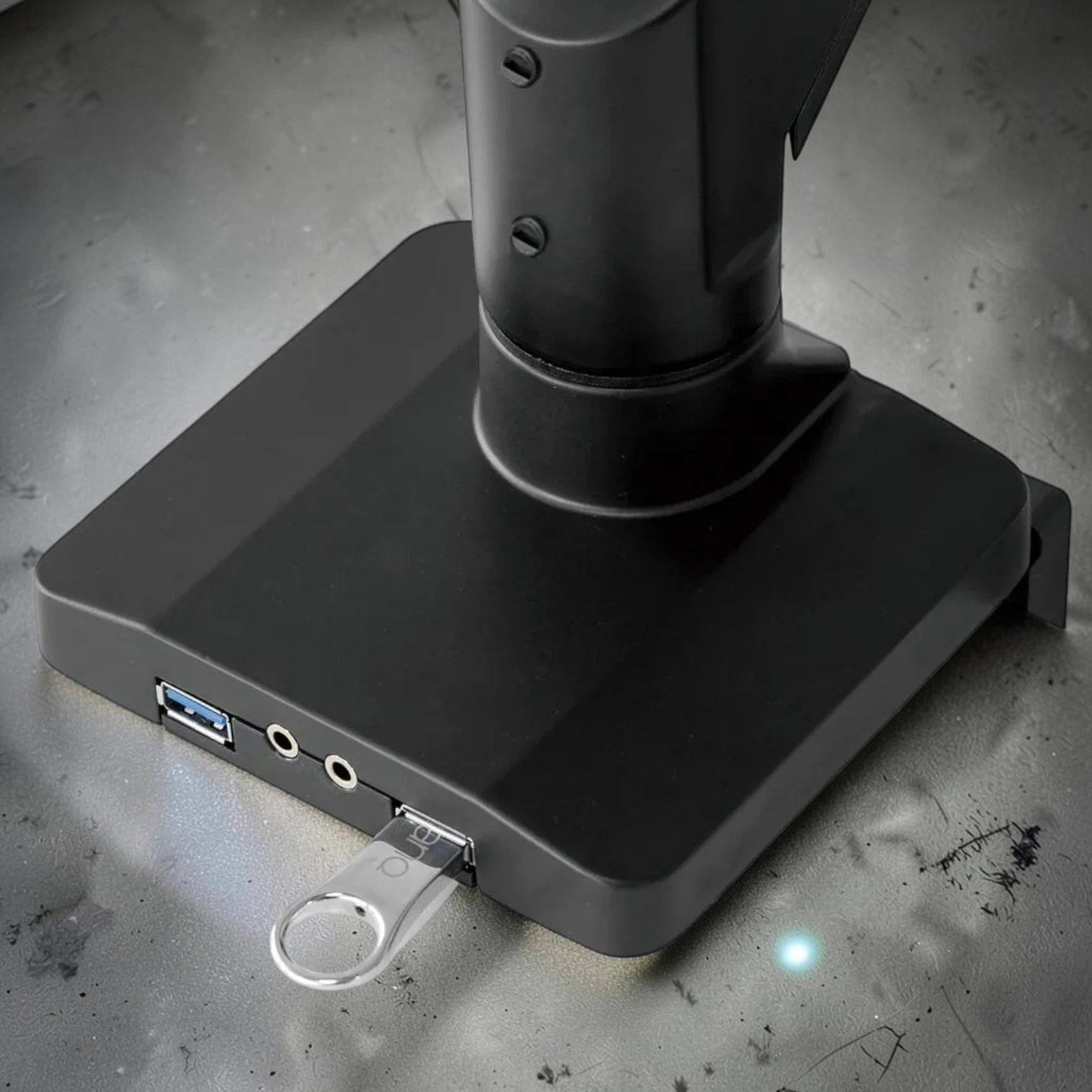

For cable management, the arm design includes channels to maintain organized workspaces. The base of the unit is equipped with two USB 3.0 ports and integrated microphone and headphone ports. Please ensure that monitor weight is verified before installation, as tension adjustment is necessary for proper gas spring function. If using monitors with recessed VESA mounts, additional hardware or spacers may be required to ensure a secure fit.

Specifications:

• Physical Characteristics: Gas Spring Monitor Arm, Powder Coated Black
• Dimensions: 1330x709x770mm [52.4 x 27.9 x 30.3 inches]
• Weight Capacity: 1~6kg [2.2~13.2lbs] per screen
• Arm Full Extension: 526mm [20.7 inches]
• Installation: Grommet or Clamp
• Quick Release VESA Plate: Included
• Ports: 2x USB 3.0, 1x Microphone, 1x Headphone
• Certifications: RoHS and REACH compliant
